BOYI customized All Stainless Steel surface cooler
Item specifics
- Core Component
- Finned Tube Heat Exchanger
- Tube Diameter
- 7mm, 9.52mm, 12.7mm, 15.88mm
- Casing Material
- Galvanized Steel, Aluminium, Stainless Steel
- Tube Material
- Copper, Stainless Steel
- Fin Material
- Aluminum, Copper, Stainless Steel
Review
Description

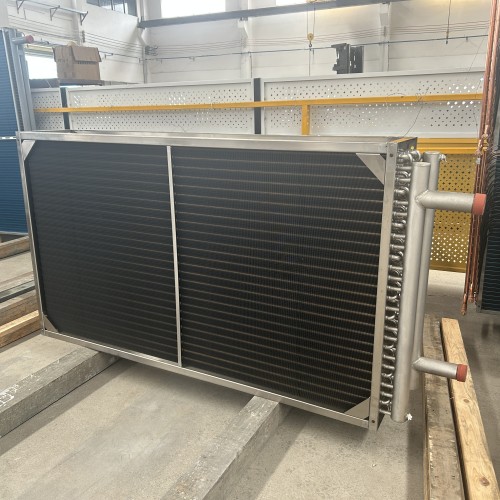

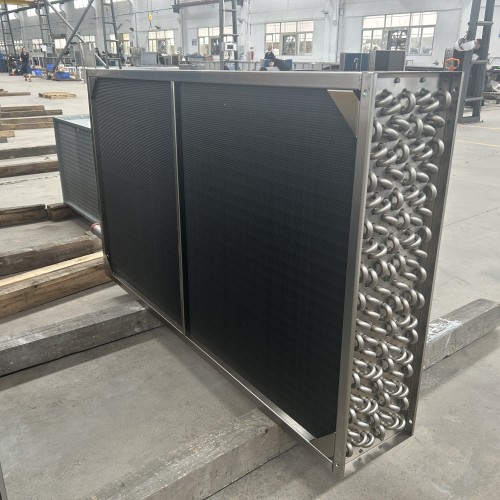

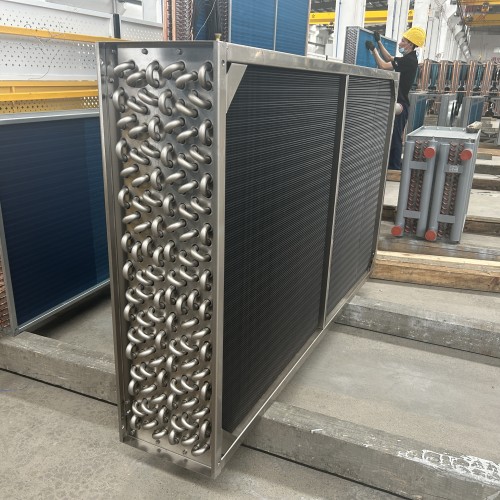

BOYI customized All Stainless Steel surface cooler
This 8 Rows 26 Holes 1750mmL surface cooler is All stainless steel.
The core construction uses 5/8" Ø15.88*0.6mm stainless steel tubes and 0.115mm stainless steel fins (FPI 2.82mm). Hole spacing: 38.1mm. Row spacing: 33mm. Additionally, the end plates are manufactured out of 1.5mm thick stainless steel sheet.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
