BOYI customized 174KW copper tube V-type Dry Cooler for Daily Chemicals Industry
- Model
- V-type Dry Cooler
Item specifics
- Core Component
- Finned Tube Heat Exchanger
- Tube Diameter
- 7mm, 9.52mm, 12.7mm, 15.88mm
- Casing Material
- Galvanized Sheet, Aluminium, Stainless Steel
- Tube Material
- Copper, Stainless Steel
- Fin Material
- Aluminum, Copper, Stainless Steel
Review
Description
BOYI customized 174KW copper tube V-type Dry Cooler for Daily Chemicals Industry

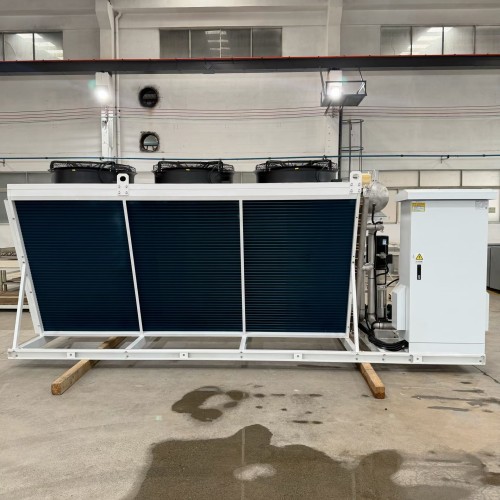

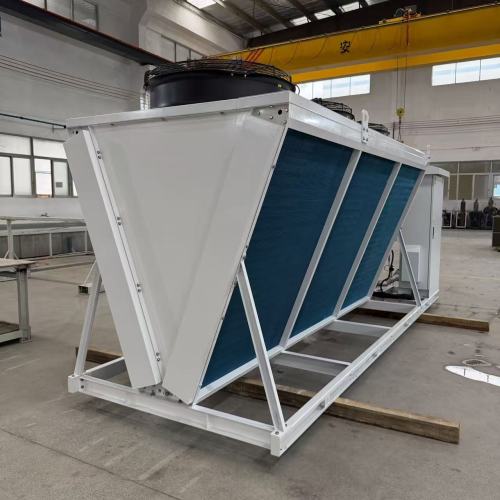

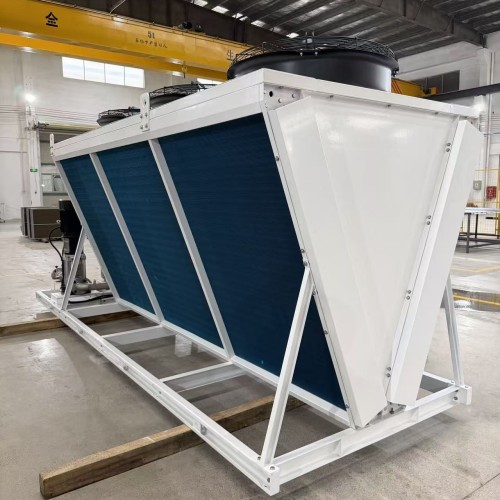

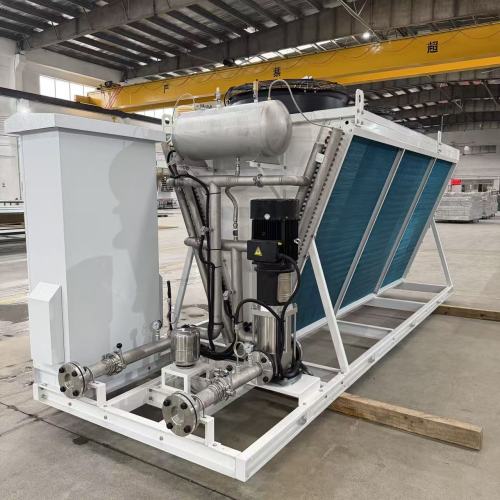

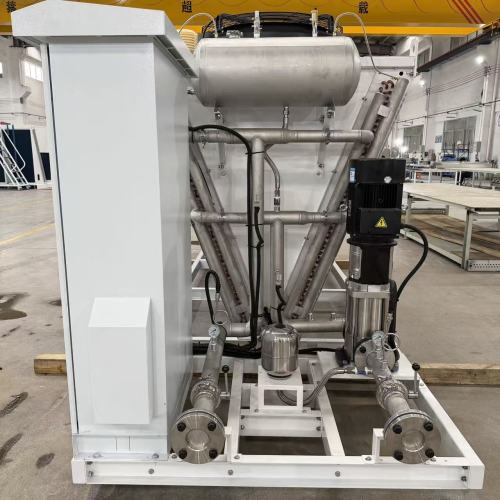

This customized 4+4 Rows 38 Holes 3150mmL V-type Dry Cooler with 3 AC Kemao 910mm Fans is provided for Daily Chemicals Industry.
The core construction uses 4/8" Ø12.7*0.4mm Copper Tubes and 0.12mm Hydrophilic Corrugated Aluminum Fins (FPI 2.12mm). Additionally, the Frames are manufactured out of 2.0mm thick Painted Steel Plate, the mounting brackets and wind panels are constructed using 3.0mm thick outdoor Painted Steel Plate.
Main Features:
1. No cooling water consumption, completely dry operation, no water pollution, no sewage discharge.
2. Low operation cost, simple maintenance and long service life.
3. Stable performance, suitable for various industrial working conditions and outdoor installation.
4. Energy-saving and low noise, environmentally friendly and energy-efficient.
5. Widely used in data centers, industrial refrigeration, HVAC central air conditioning, photovoltaic energy storage, injection molding machinery, laser equipment, chemical industry and other cooling fields.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
