BOYI Customized 2.5MW Stainless Steel Tube V-type Dry Cooler for Data Centers
- Model
- V-type Dry Cooler
Item specifics
- Core Component
- Finned Tube Heat Exchanger
- Tube Diameter
- 7mm, 9.52mm, 12.7mm, 15.88mm
- Casing Material
- Galvanized Sheet, Aluminium, Stainless Steel
- Tube Material
- Copper, Stainless Steel
- Fin Material
- Aluminum, Copper, Stainless Steel
Review
Description
BOYI Customized 2.5MW Stainless Steel Tube V-type Dry Cooler for Data Centers

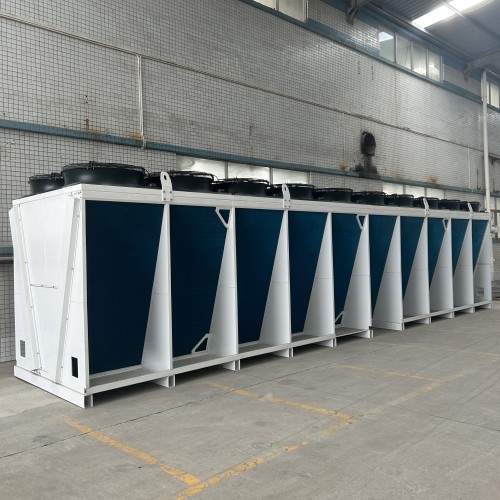

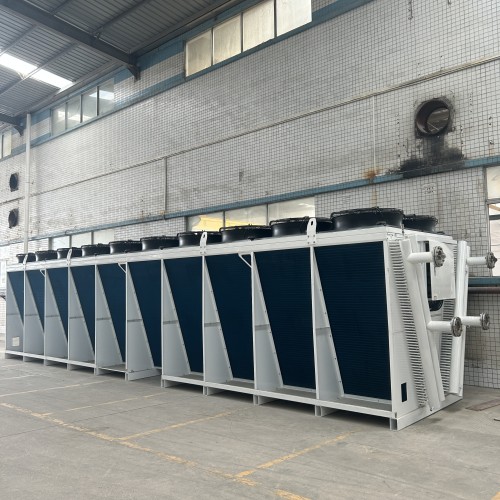

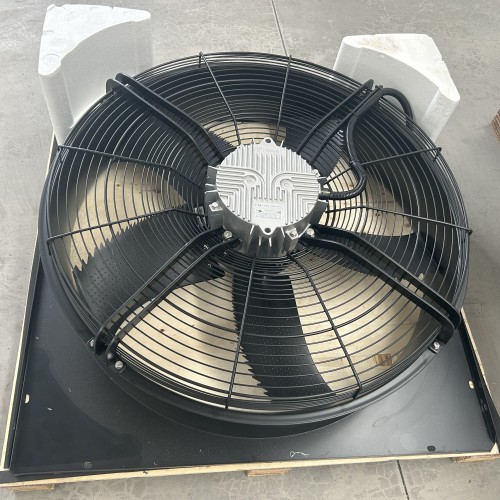

This Customized 6 Rows 60 Holes 12200mmL V-type Dry Cooler with 20 AC Kemao 910mm Fans is provided for Data Centers.
The core construction uses 5/8" Ø15.88*0.65mm Stainless Steel Tubes and 0.115mm Hydrophilic Corrugated Aluminum Fins (FPI 2.1mm). Additionally, the Frames are manufactured out of 3.0mm thick Painted Steel Plate, the mounting brackets and wind panels are constructed using 3.0mm thick outdoor Painted Steel Plate.
Main Features:
1. No cooling water consumption, completely dry operation, no water pollution, no sewage discharge.
2. Low operation cost, simple maintenance and long service life.
3. Stable performance, suitable for various industrial working conditions and outdoor installation.
4. Energy-saving and low noise, environmentally friendly and energy-efficient.
5. Widely used in data centers, industrial refrigeration, HVAC central air conditioning, photovoltaic energy storage, injection molding machinery, laser equipment, chemical industry and other cooling fields.
- KSpecifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
