2500KW Stainless Steel Tube V-type Dry Cooler with Wet Pads for Mining Field
- Model
- V-type Dry Cooler
Item specifics
- Core Component
- Finned Tube Heat Exchanger
- Tube Diameter
- 7mm, 9.52mm, 12.7mm, 15.88mm
- Casing Material
- Galvanized Sheet, Aluminium, Stainless Steel
- Tube Material
- Copper, Stainless Steel
- Fin Material
- Aluminum, Copper, Stainless Steel
Review
Description

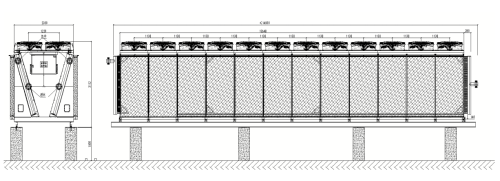

2500KW Stainless Steel Tube V-type Dry Cooler with Wet Pads for Mining Field
This Customized 6 Rows 64 Holes V-type Dry Cooler with Wet Pads with 24 AC Fans is provided for Mining Field.
The core construction uses 5/8" 15.88*0.65mm Stainless Steel Tubes and 0.12mm Hydrophilic Corrugated Aluminum Fins (FPI 2.1mm). Additionally, the Frames are manufactured out of 3.0mm thick Painted Steel Plate, the mounting brackets and wind panels are constructed using 3.0mm thick outdoor Painted Steel Plate.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
