BOYI customized U-type copper tube Evaporator Coil
Item specifics
- Core Component
- Finned Tube Heat Exchanger
- Tube Diameter
- 7mm, 9.52mm, 12.7mm, 15.88mm
- Casing Material
- Galvanized Steel, Aluminium, Stainless Steel
- Tube Material
- Copper, Stainless Steel
- Fin Material
- Aluminum, Copper, Stainless Steel
Review
Description

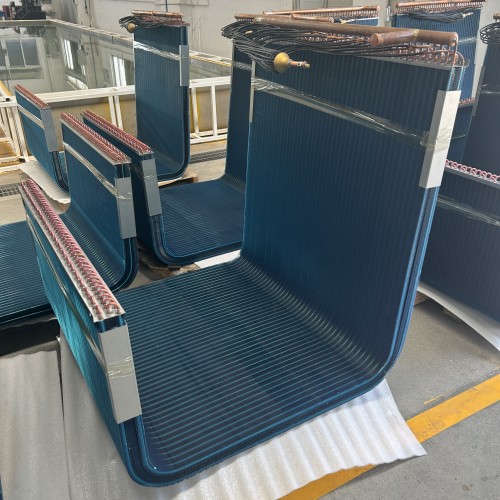

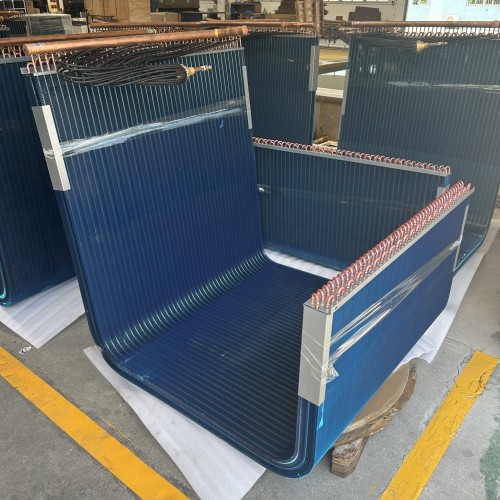

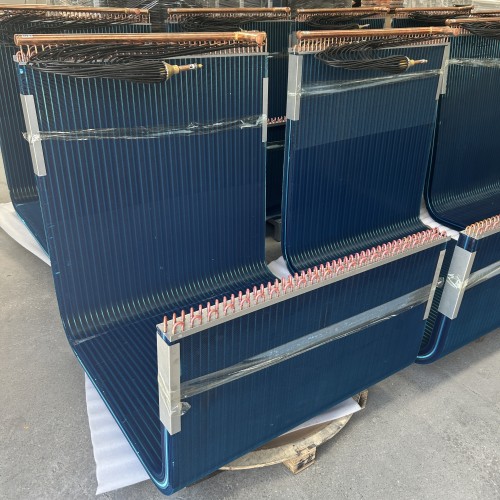

BOYI customized U-type copper tube Evaporator Coil
These 3 Rows 44 Holes 2800mm(680+1100+1180)L Evaporator Coil is provided for Beverage Industry.
The core construction uses 2/8" Ø7*0.28mm copper tubes and 0.105mm Hydrophilic aluminum fins (FPI 2mm). Hole spacing: 25mm. Row spacing: 21.65mm. Additionally, the end plates are manufactured out of 1.5mm thick galvanized sheet.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
